| name | Medical Digital Radiography System |
| Tube | 300KHU |
| Focus | small focus: 0.6mm, big focus: 1.2mm |
| Focus power | small focus 20KW, large focus 50KW |
| Longitudinal Diagnostic Bed | 200kg |
| Output voltage range | 40~150KV |
| Inverter frequency | 385KHZ |
| Output power | 50KW |
| Anode speed | 9700 r/m |
| Flat Panel Detector | 2 non-spliced flat panel detectors |

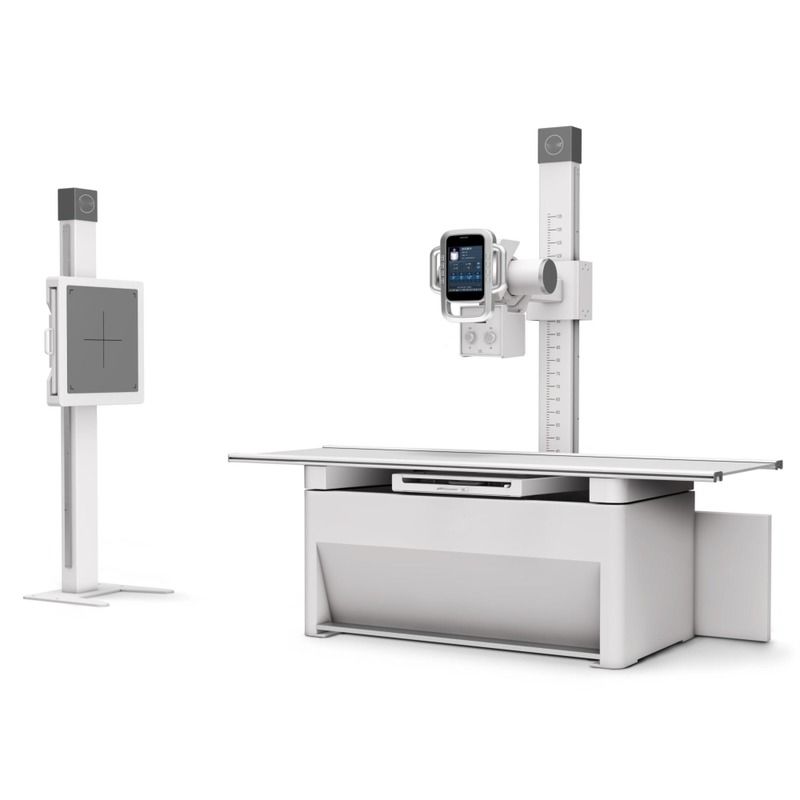

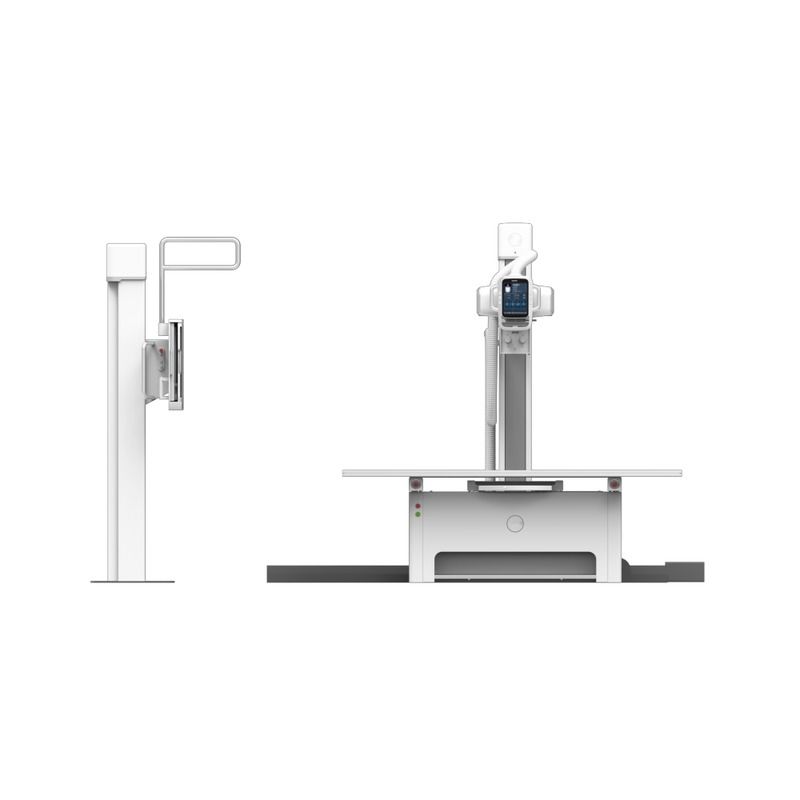

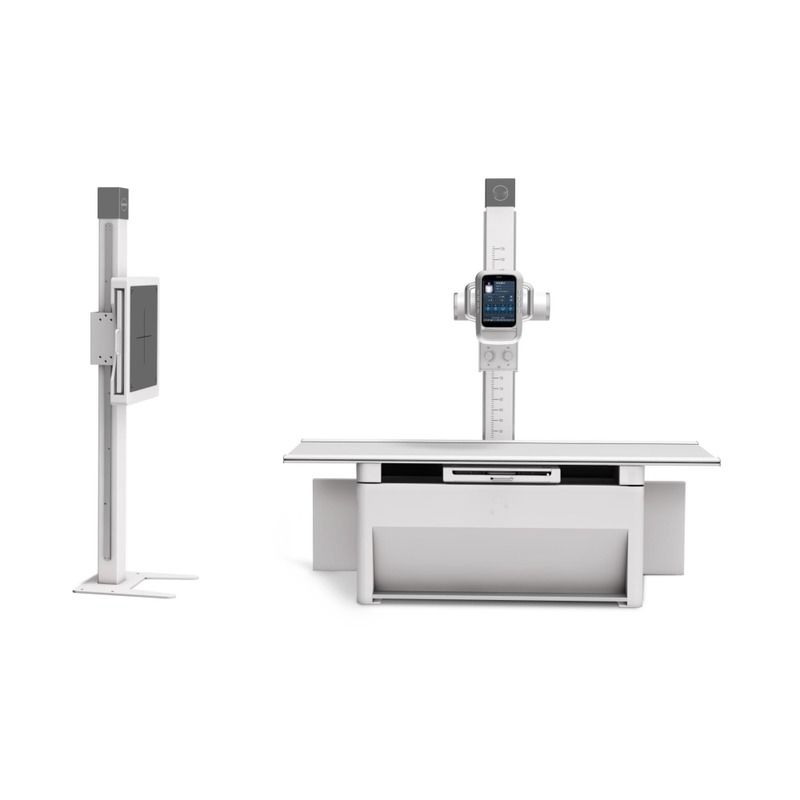

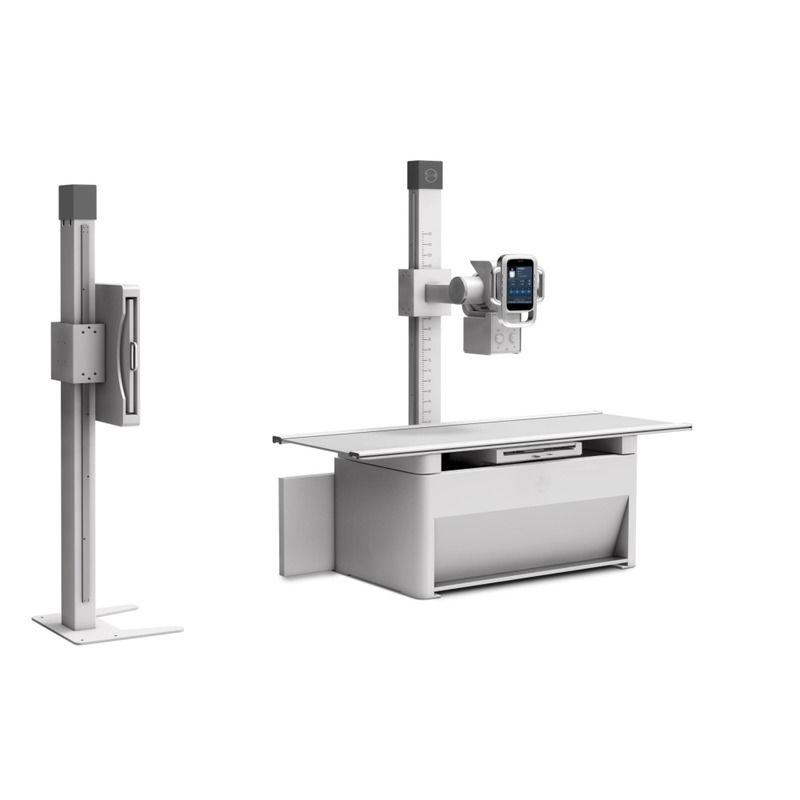

CMT-DX100 electric double column DR is equipped with electric radiography bed and chest trestle, which can greatly reduce doctor's burden adjusting to different posi- tions. More than 100 kinds of 3D position placement schematic diagrams launched by COMITEMed originally can be perfectly displayed on our large color touch-screen,which almost cover all of clinic radiography positions.The industry-leading A-Si FPD provides you with excellent quality image. And humanized operation interface is easy to apply and use, meeting demands of doctors at each level.
Perfect Combination of Classic Structure and Modern Design
1.Classic electric double column configured with electric floating diagnostic bed satisfies user’s habit;
2.One-key positioning switching can be realized easily and simply with our auto- matic electric rack;
3.Optional edge, center and other alignment modes can be accomplished with one-key APR selection and automatic flat panel tracking;
4.Auto-moving tube column design ensures the preset position reach to exactly place automatically
