Shenzhen Comite Technology Co., Ltd.
Thank You!

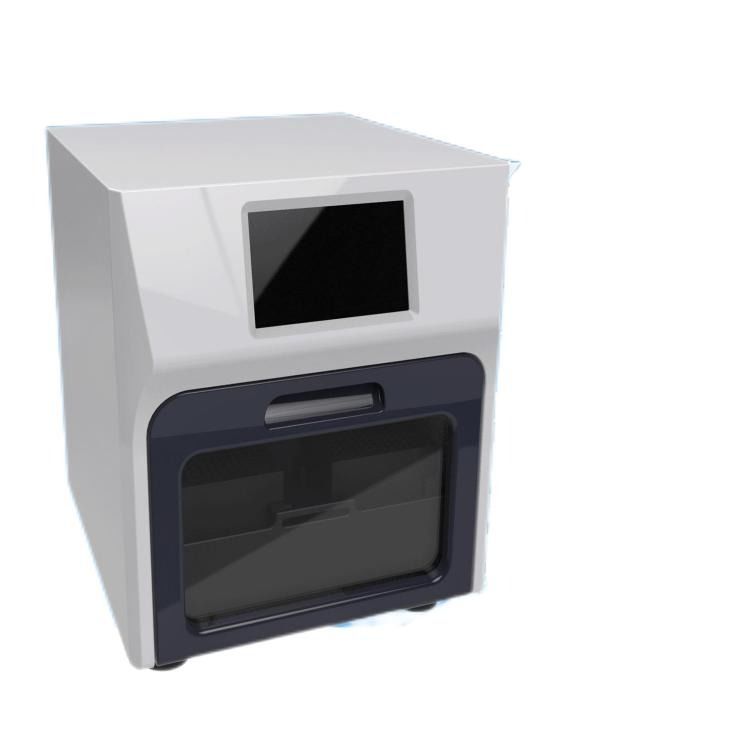

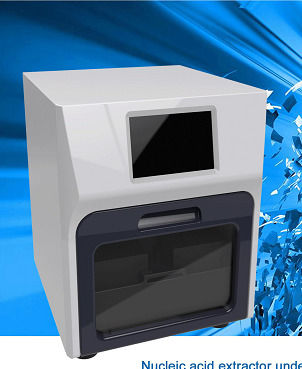

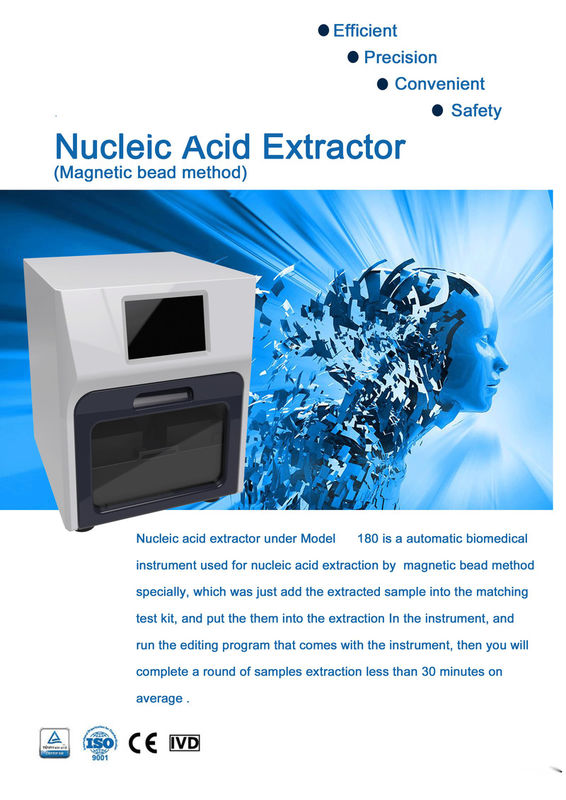

Product name | Nucleic Acid Extraction System |
Sample type | Whole blood, serum, plasma, throat swab, puncture fluid, etc |
Extraction methods | Automatic magnetic bead method |
Large extraction volume range | 20-1000 μ I sample volume can be extracted |
High-magnetic-beads recovery | ≥98% |
High-heating temperature accuracy | 6pcs independent heating modules, customized cracking temperature according to requirements |
Extraction time | The conventional extraction was less than 30 minutes, the extraction time of a separate certain method was 15 minutes |
Purification_sensitivity | The lowest extraction concentration can reach 50-100 copies / ml |
Unique safety door design | When the safety door is opened, the program will be suspended automatically; When the safety door is closed, the program can continue to run to avoid cross infection. |
Temperature control system | High'stability temperature control system, the temperature difference between holes is less than 1 degree centigrade, reducing extraction differentiation . |
Power off safety protection | Support power-off protection function, and continue operation after power on |
Complete internal procedures | Built in 10 groups of mode program,can add or import parameters independently |
Sample channel | 48 sample channels |
Multi gear_shock mixing | Various gears can be adjusted, and the vibration amplitude can be adjusted with the reagent volume |
Diffrence between extraction holes | CV ≤3% |
Operation_mode | Large touch screen,humanized menu management, easy operation |
Instrument extension interface | Standard RS232 interface |
Disinfection method | Disinfection with built-in ultraviolet lamp |
Exhaust mode | Fan |
Power supply | AC10-226v 50/60HZ |
Dimensions | 398mmX446mmX431mm |
Weight | 35kg |
