| name | Medical digital radiography system |
| Tube | 300KHU |
| Focus | small focus 0.6mm, large focus 1.2mm |
| Focus power | small focus 20KW, large focus 50KW |
| High Voltage Generator | 50KW |
| Output current range | 10~630mA |
| Flat Panel Detector | 43*43cm |
| Diagnostic Bed | 200kg |
| DICOM 3.0 | YES |
| Minimum exposure time | 1ms |

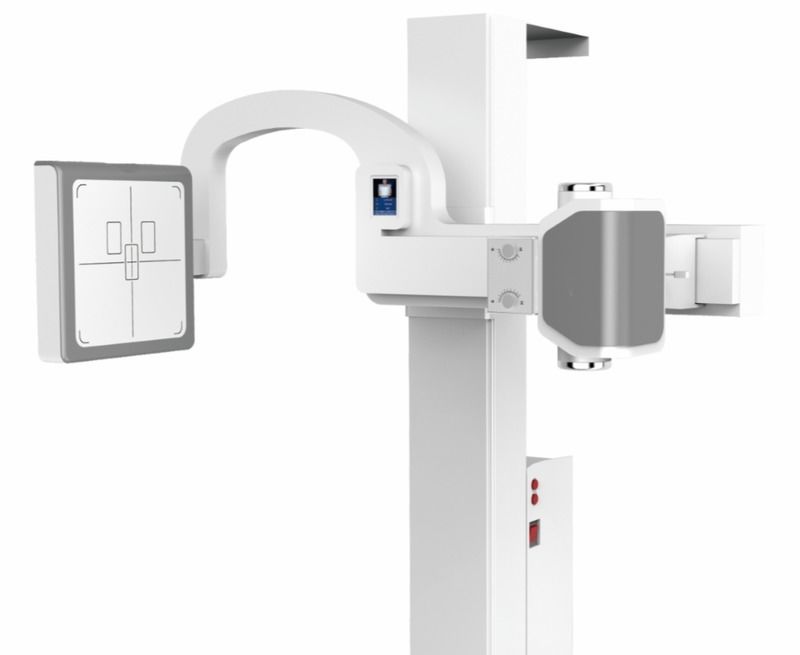

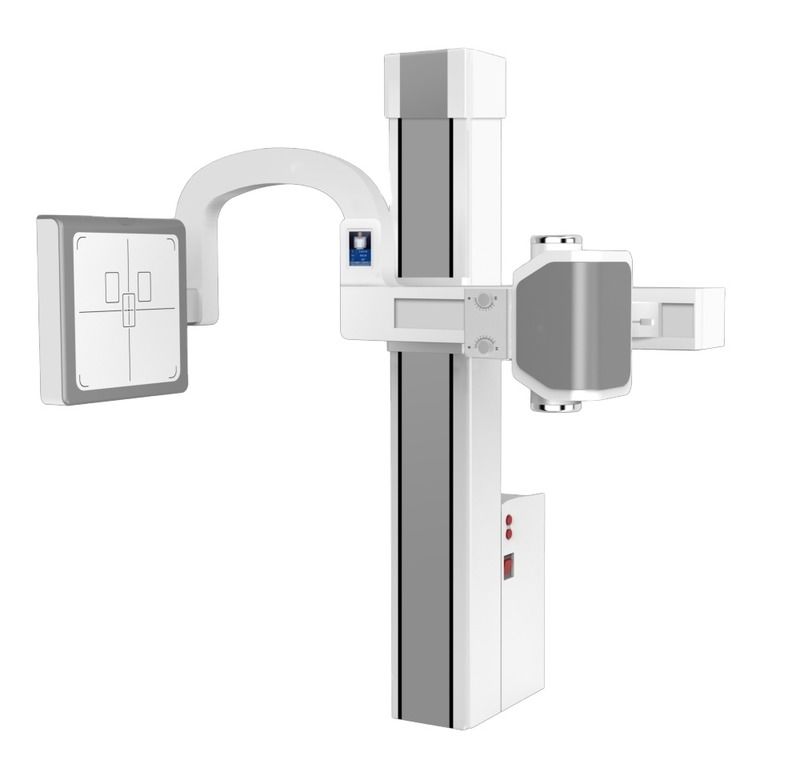

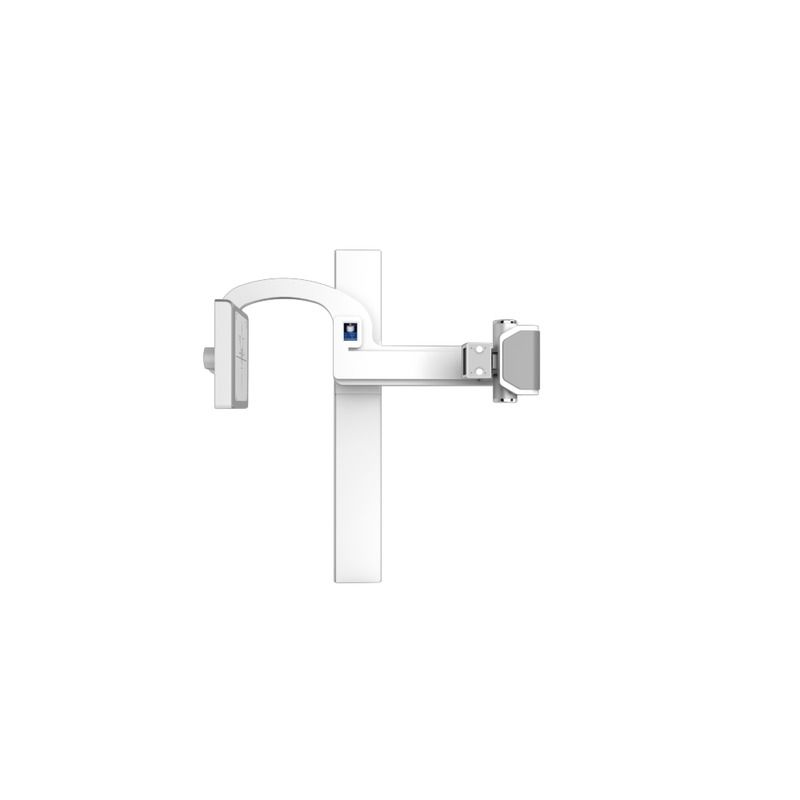

CMT-UC300 UC arm DR adopt simple and reliable integrated design, easy installation and ultra-low failure rate, which can fully meet the needs oflarge-capacity continuous filming of medical units of different levels. With anexcellent imaging chain composed of industry-leading direct imaging digital flat panel detector, high-performance radiation generator, automatic image acqui- sition and post-processing software, it can deliver the highest standards images.
1.Optimized UC arm design, small footprint, multiple functions, and combined the advan- tages of simplicity and practicality.
2.Equipped with mobile bed, easy covering standing position, lying position, horizontal side position, etc which satisfies demands of every position imaging.

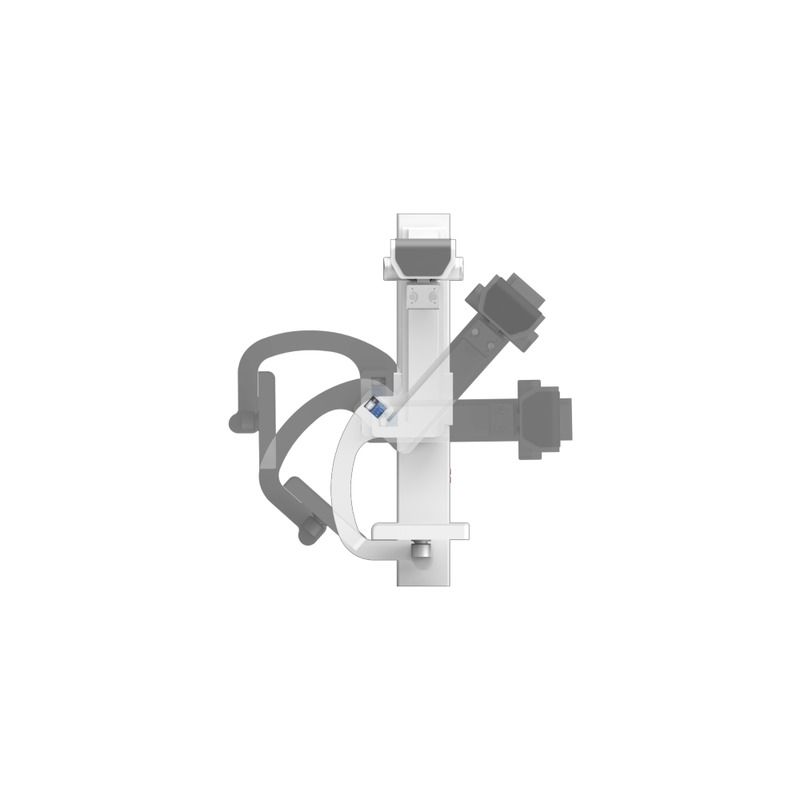

3.Configured fully automatic electric balance rack with one-button position switching, ea- sy to switch positions .
4.Assembled reliable in-line guide rail and multiple anti-collision mechanical protection,
caring for both doctors and patients.
