| name | Medical digital radiography system |
| Tube | 300KHU |
| Focus | small focus 0.6mm, large focus 1.2mm |
| Focus power | small focus 20KW, large focus 50KW |
| High Voltage Generator | 50KW |
| Output current range | 10~630mA |
| Flat Panel Detector | 43*43cm |
| Diagnostic Bed | 200kg |
| DICOM 3.0 | YES |
| Minimum exposure time | 1ms |

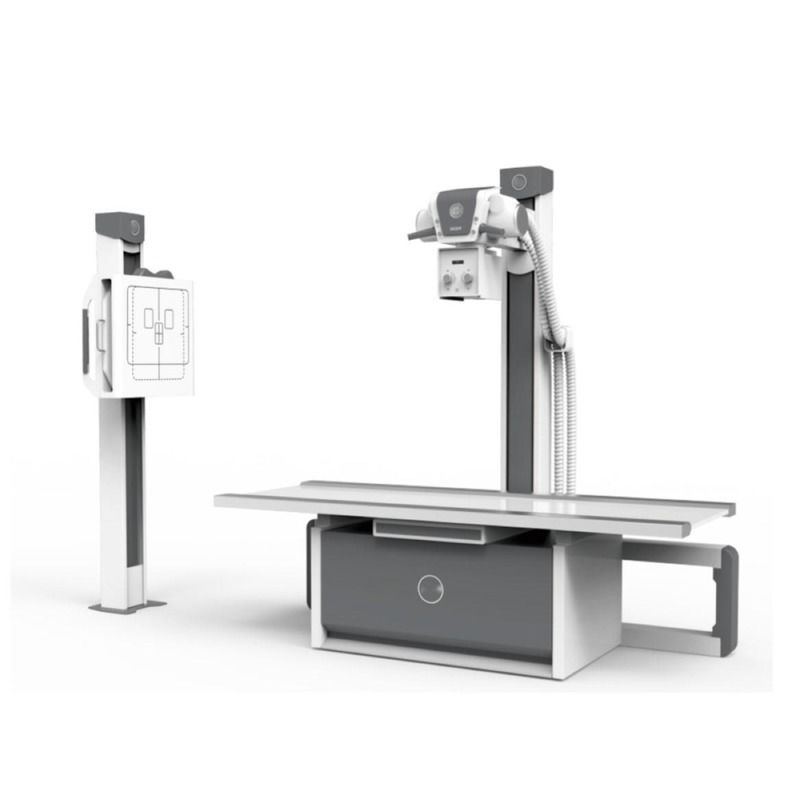

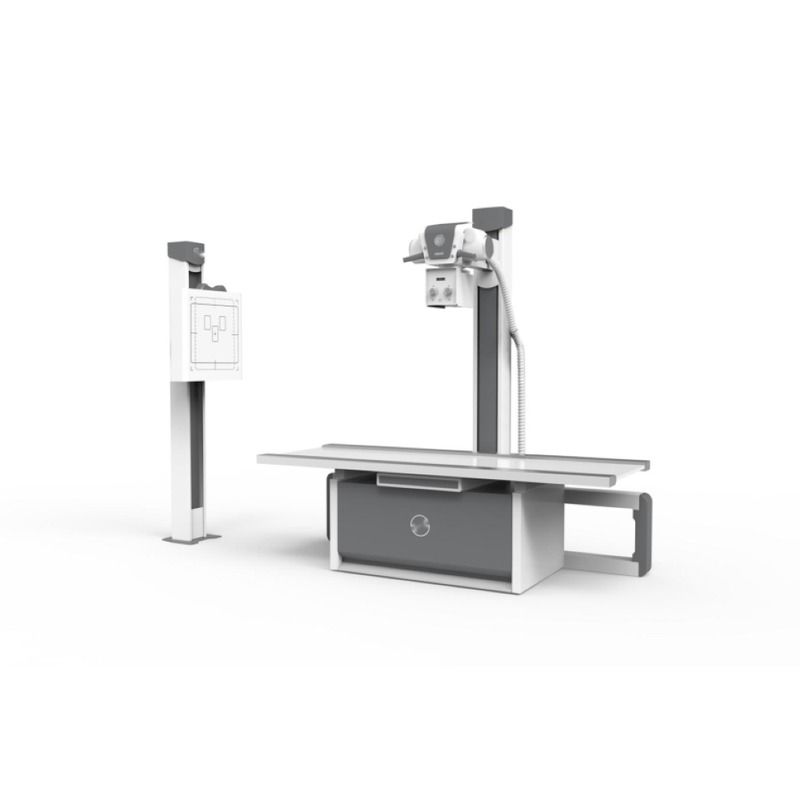

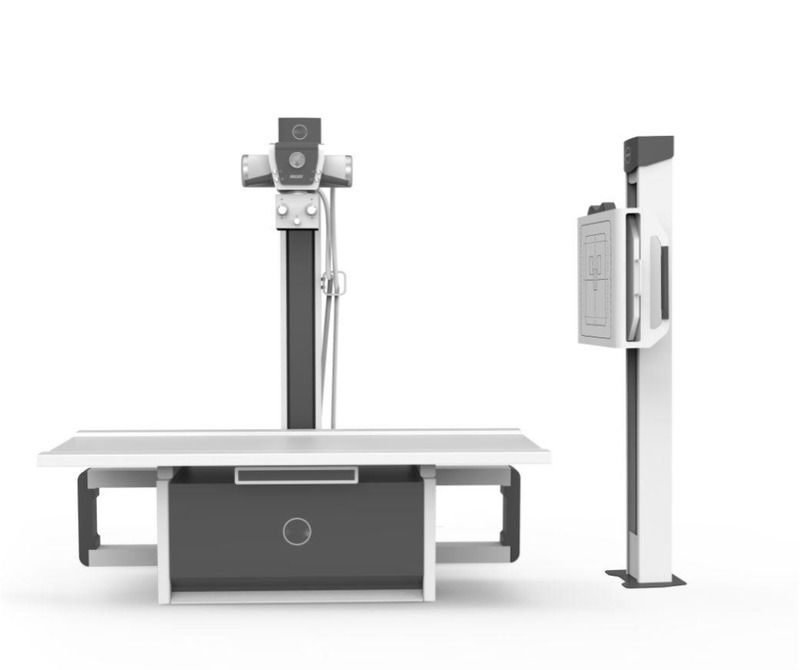

CMT-MX500 Basaltic Series manual double column DR equp with fixed radiography bed and chest trestle.The bed has two slide ways-horizontal and vertical. In order to meet the needs of complex posture,detector carriage can be moved longitudinally along the bed along the coumn Yhadvancedimami chain and X-ray tube can be moved up and down along the column.The advanced imaging chan and independent deveinced software are providing the substantial foundatiom for the perfect imaging.
Classic structure Overall application
1. With four-way float flat bed and classic structure without changing operating habits.
2. Guides of frame use embedded design, and it makes the system more beautiful and safer.
3. Guides slide smoothly with small resistance which is less than 30N
4.The solid and stable bed can load greater than 270kg.
Optimize details for clinic practice
1.The column equip with posterior and lateral armrest, which is easy to keep patient comfortable and stable.
2.Physical buttons provide accurate tactile feedback, which can avoid misoperation effectively.
3.The bed could four-way slide and precisely position by electromagnetic brake.
