name | Medical Digital Radiography System |
Tube | 300KHU |
Focus | small focus: 0.6mm, big focus: 1.2mm |
Focus power | small focus 20KW, large focus 50KW |
Longitudinal movement range | 230cm |
Lateral movement range | 190cm |
Vertical movement range | 135cm |
Output power | 50KW |
Tube current range | 10mA~630mA |
Flat Panel Detector | 17*17 inch |

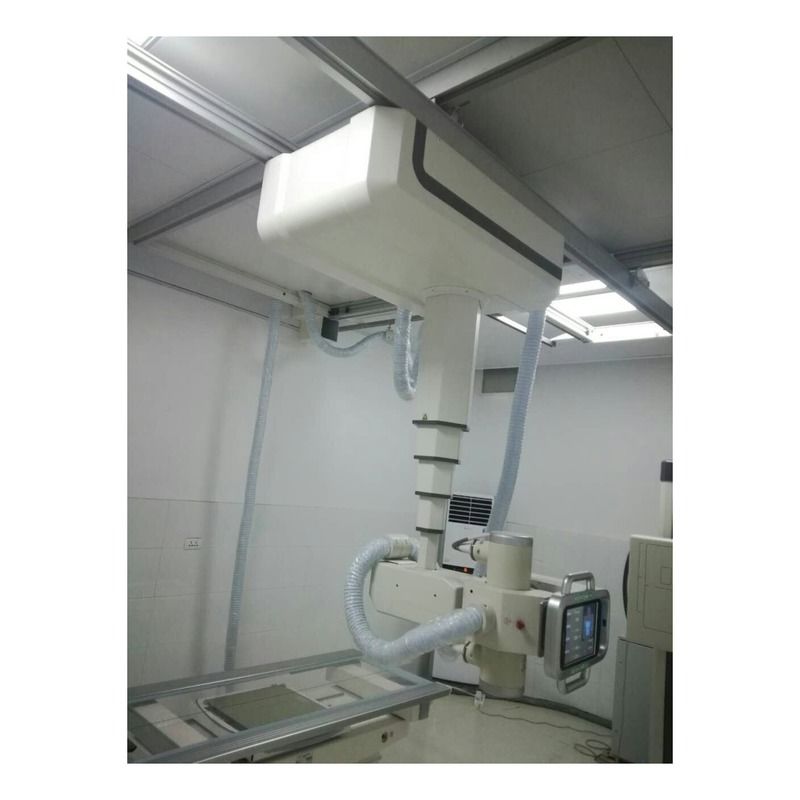

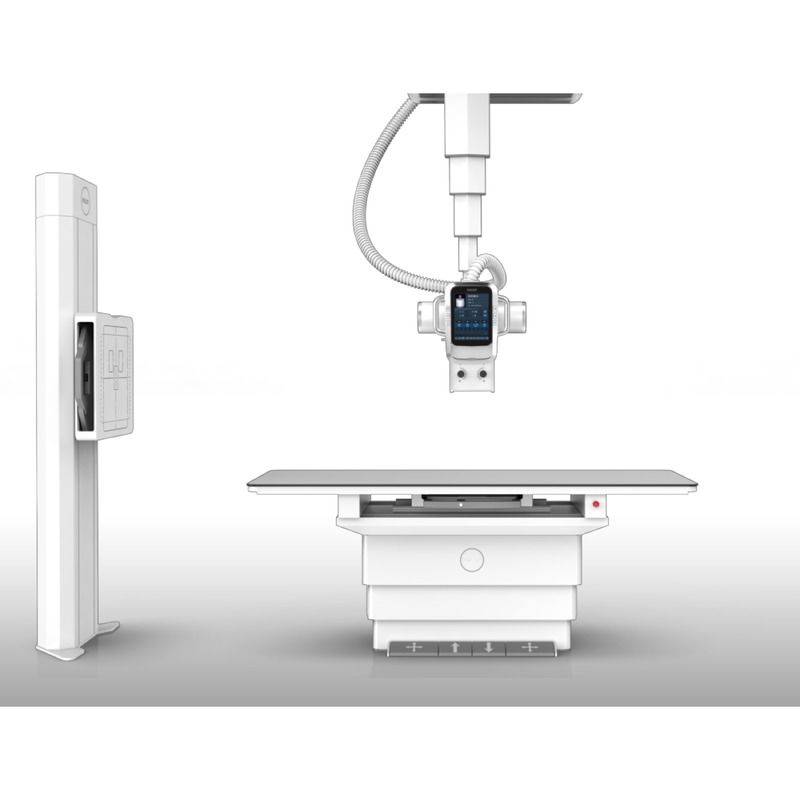

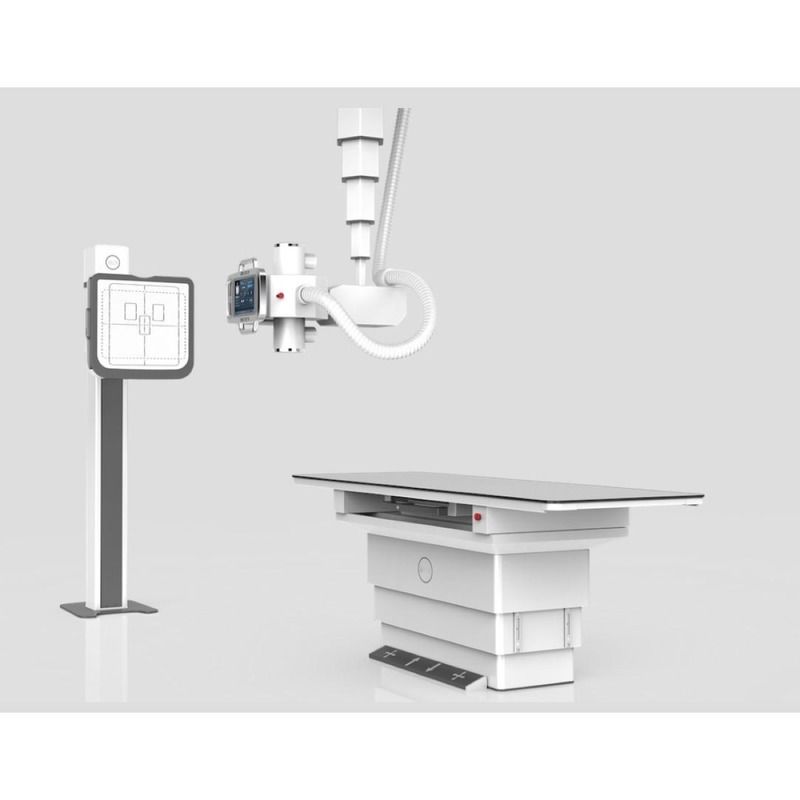

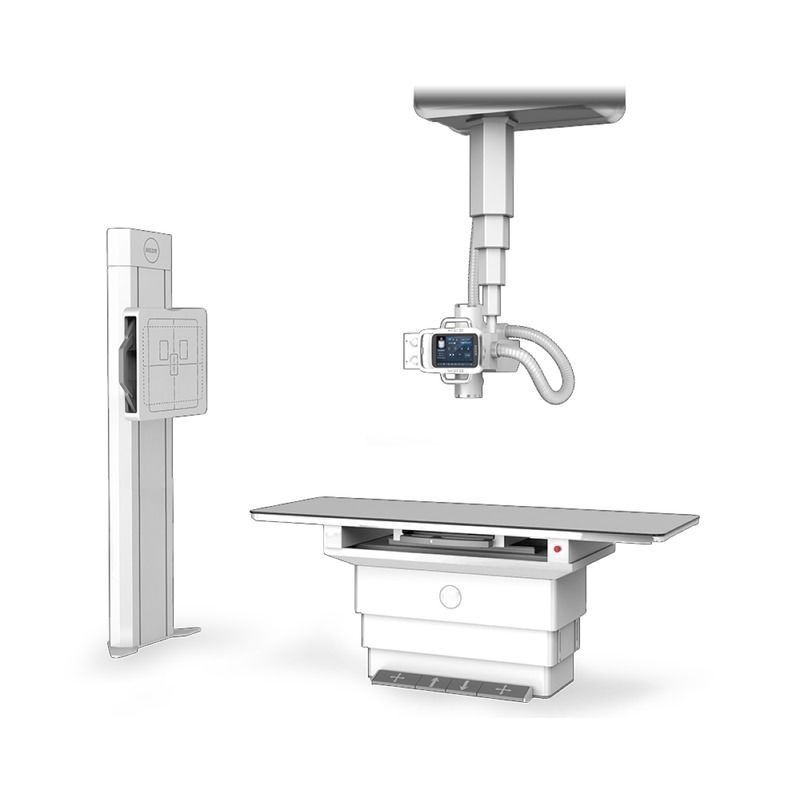

CMT-RX100 digital radiography system is COMITE medical's latest high-end DR product. Flexible suspension tube chassis design and unique electriclift photographic flat bed bring unparalleled convenient operation to the clinical application.Tube and flat automatic tracking and alignment can greatly improve work efficiency. Based on the medical image chain of new digital flat panel detector, the tissue equilibrium, after IMSCOPE advanced image processing technology, dual energy subtraction technique, automatic imagemosaic technology and other senior clinical functionand contemporary the most advanced mobile digital flat-panel technology organic combination can not only provide a high quality image but perfectly meet the complex clinical placement,which can achieve the high-end photography equipment.
Intelligent motion system, work easily
1.One key APR, all kinds of projection posture ball tube, detector is automatically in place.
2.Automatic alignment, move flat panel or detector will move the other and align.
3.High precision design, the center of after motion error is less than 2mm.
4.Slow start, slow stop technology, low noise, high security.
